HP800 V2 headphone amplifier

Features 8-channel independent high power headphone output

Each channel can handle the volume independently

More choice offers you new monitoring experience

-1-

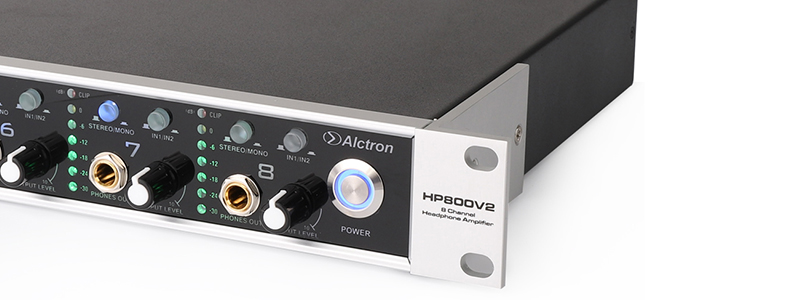

Metal shell, sturdy and durable

Showing outstanding processing

High-quality 1U rack shell design

The surface is used with electrostatic  dust-free spraying process

which features rust resistance and scratch resistance function

-2-

Powerful power with high quality chip

Create a stable environment

It adopts iron power transformer ensures low noise, powerful input and excellent audio quality.

- 3 -

Stereo input   independent channel

8-channel can be used at the same time

Features 8-channel independent high power headphone output

Each channel can handle the volume independently and 1/4’’ stereo output connector. Each channel provides more than 500mW power to show entire frequency response and better sound environment.

- 4 -

Dynamic LED indicator

To handle monitoring signal at any time

7-level output indicator to handle monitoring signal at any time also avoid overload.

-5-

MONO/STEREO knob to satisfy various monitoring requirement

Each channel owns MONO/STEREO knob to reality one headphone monitoring 2 different sound channel.

-6-

8 sets AUX input

Offers each headphone additional signal

Besides two main input it also owning 8 sets AUX input which ensures offering additional signal to each headphone.

-7-

Specification

Audio input

Input connector: 1/4’’ balanced

Input impedance: balanced 40Ω/unbalance 20KΩ

Max input level: 16dBu

CMRR: ＞55dB@1KHZ

Aux input: 1/4"TRS stereo

Input impedance: 15KΩ

Main output: 1/4"TRS balanced

Headphone output: 1/4"TRS stereo

Max output power: +24dBm（overload impedance 100Ω）

                   +21dBm（overload impedance 8Ω）

Frequency response: 20Hz-80KHZ±2dB

Noise: 22HZ-22KHZ＞90dB@0dB

Dynamic range: 22HZ-22KHZ＞110dB

Distortion: 0.006%

Knob function

Main input 1/main input 2: knob can choose Main input 1 or main input 2

STEREO/MONO: press the button changing to MONO

STEREO: change the mode STEREO/MONO

Display

Input level: 7-level LED indicator --30/-24/-18/-12/-6/0dB/ clip

Output level: 7-level LED indicator --30/-24/-18/-12/-6/0dB/ clip

Power

Voltage: 100-120VAC，200-240VAC,50-60HZ

Connecting cable: standard IEC connecting cable
