DCT500

Power Supply


1、It owns 6 isolated outputs supplying 1500mA of power in total

2、4 separate voltage options with 1500mA of power to pedals

3、Switchable 115V or 230V mains

4、You can choose 9V DC,12VDC or 18V AC, 12V AC power



Where to buy

Product introduction

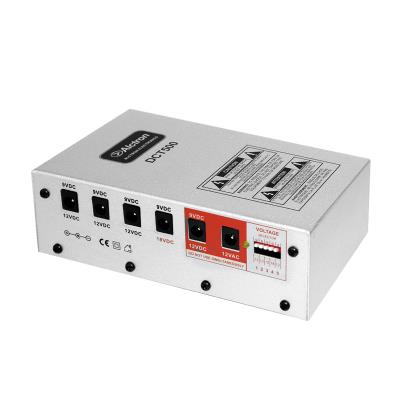

DCT500The DCT500 has 6 isolated outputs supplying 1500mA of power in total. Each of the first 3 outputs can be set to either 9V DC or 12V DC.Output 4 can be set to either 9V DC or 18V DC. Outputs 5 and 6 offer 9V DC/12V DC and 12V AC respectively, but only one of these two outputs can be used at a time. In all that's 5 simultaneous outputs, each supporting one or more pedals.All 9V and 12V outlets deliver 300mA each. When outlet 4 is switched to 18V DC it delivers 150mA.
